Compressed Air Blowers Scotland
Wastewater treatment plants, pneumatic conveying systems, and large-scale process facilities have one thing in common: they need enormous volumes of low-pressure air, continuously, with zero oil contamination. A standard air compressor can’t do that job efficiently. Industrial compressed air blowers can.
Design Air, Atlas Copco Premier Distributor for Scotland since 2003, supplies and commissions the complete range of Atlas Copco oil-free industrial air blowers from our base in Airdrie.
What Is the Difference Between an Air Blower and an Air Compressor?
An air blower produces high-volume, low-pressure airflow in the range of 0.1 to 1.7 bar(g). A standard air compressor delivers air at 6 to 13 bar(g) or above. These are completely different operating ranges designed for completely different jobs.
If your process needs to aerate a wastewater tank, move bulk materials through a pipeline, or support fermentation, a blower is the right choice. Running a high-pressure compressor for these applications wastes significant energy, often 30% or more compared to correctly specified blower technology.
The difference matters when selecting equipment. Use the wrong technology and you either underperform on volume or overpay on energy every single day.
| Application | Correct Technology | Operating Pressure |
| Pneumatic tools, cylinders | Air compressor | 6 – 13 bar(g) |
| Wastewater aeration | Air blower | 0.4 – 0.7 bar(g) |
| Pneumatic conveying | Air blower | 0.3 – 1.0 bar(g) |
| Fermentation, process air | Air blower | 0.1 – 0.5 bar(g) |
Our engineers at Design Air assess your application before recommending any equipment. Wrong technology selection is one of the most common and costly mistakes we see in Scottish industrial facilities.
Atlas Copco Industrial Air Blower Range

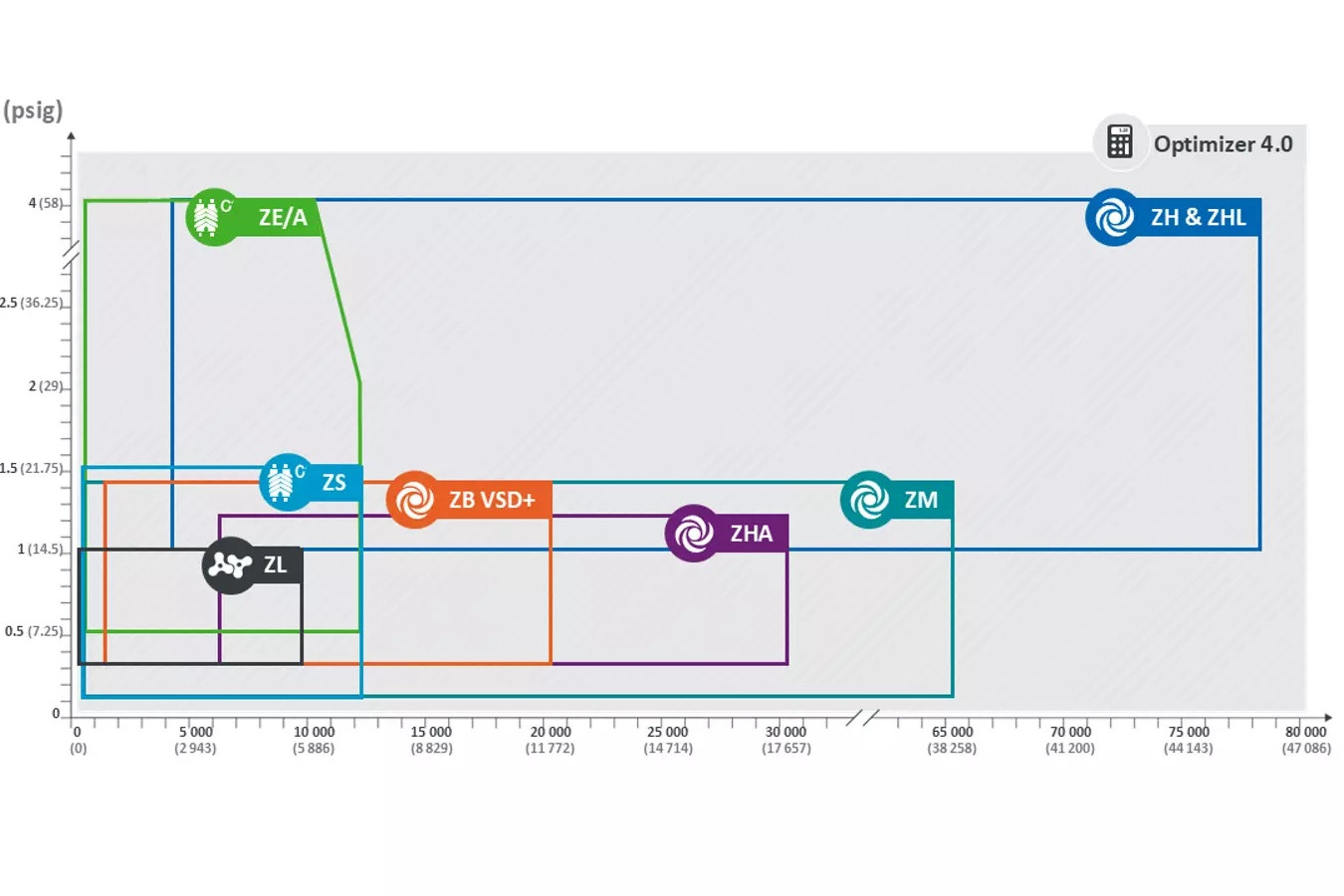

Design Air supplies five Atlas Copco blower series, covering flows from 5 l/s to 18,880 l/s and pressures from 0.1 to 1.7 bar(g). Every model is 100% oil-free and certified to ISO Class 0.
Atlas Copco, one of the world’s largest manufacturers of compressed air and gas equipment, designs each series for a specific pressure range and application type. Variable Speed Drive (VSD+) technology is available across the range for automatic flow matching and reduced energy consumption.
| Series | Technology | Flow Range | Pressure | Power |
| ZS VSD+ | Rotary Screw | 100 – 3,264 l/s | 0.1 – 1.5 bar(g) | 18 – 315 kW |
| ZL VSD | Lobe | 5 – 2,767 l/s | 0.3 – 1.0 bar(g) | 0.55 – 315 kW |
| ZM | Multistage Centrifugal | 47 – 18,880 l/s | 0.14 – 1.7 bar(g) | 4 – 2,600 kW |
| ZB VSD+ | Centrifugal | 556 – 5,556 l/s | 0.3 – 1.4 bar(g) | 100 – 400 kW |
| ZHA | Single Stage Centrifugal | 1,944 – 8,900 l/s | 0.3 – 1.2 bar(g) | 250 – 1,000 kW |
ZS VSD+ Rotary Screw Blower
The ZS VSD+ is Atlas Copco’s flagship blower for continuous-duty applications. It uses up to 30% less energy than traditional roots or lobe blowers at equivalent output. It’s the right choice wherever the blower runs around the clock, and energy is the dominant operating cost.
ZL Lobe Blower
The ZL lobe blower is a proven, robust design suited to variable or harsh environments. Its straightforward construction makes it easy to maintain. It’s the reliable option for grit removal, filter backwash, and lower-pressure conveying duties.
ZM, ZB, and ZHA Centrifugal Blowers
For large-scale municipal or industrial processes, the ZM multistage centrifugal covers flows up to 18,880 l/s with minimal maintenance requirements. The ZB VSD+ and ZHA models are built for high-volume applications where direct-drive efficiency and a compact footprint matter. The right series for your site depends on flow rate, pressure requirement, and duty cycle. Our engineers size each installation individually.
Key Applications for Industrial Air Blowers
Industrial air blowers serve three primary application categories: wastewater treatment aeration, pneumatic conveying, and process air supply. Each has a different pressure requirement and blower type.
Wastewater Treatment Aeration
Aeration represents approximately 60% of the total energy cost in a biological wastewater treatment plant, making blower selection the single biggest lever on operating expenditure.
Diffused aeration, activated sludge processes, membrane bioreactors (MBR), and sequencing batch reactors (SBR) all need a continuous, reliable supply of low-pressure air. The Optimizer 4.0, Atlas Copco’s central blower controller, matches airflow to dissolved oxygen demand automatically, reducing energy waste throughout the day as treatment loads rise and fall.
Design Air engineers have sized and commissioned aeration blower systems for wastewater treatment facilities across Scotland. We work with site operators to specify the correct blower type, quantity, and control configuration for the treatment process.
Pneumatic Conveying
Bulk materials, including cement, flour, plastic pellets, and chemical powders, move efficiently through pipelines using low-pressure blower air. Atlas Copco offers ATEX-certified blower packages for hazardous environments and silo-feeding configurations for food, agriculture, and chemical processing.
Process and Cooling Air
Air blowers supply fermentation aeration in breweries and food production, cooling air in industrial processes, and combustion air in cement and minerals. For Scottish food producers, oil-free blowers at Class 0 certification are the correct specification wherever process air is in contact with or in the vicinity of the product.
Why Choose a Variable Speed Drive Blower?
A VSD+ blower automatically adjusts its motor speed to match actual process demand. A fixed-speed blower cannot. It runs at full load regardless of what the process requires.
Here’s where the energy waste adds up. An aeration blower in a wastewater plant runs 8,760 hours a year. If demand drops by 30% overnight or during winter months, a fixed-speed lobe blower still consumes near-full power. A VSD+ blower reduces its speed proportionally, cutting energy consumption by the same margin.
The case for VSD+ across most continuous blower applications comes down to three measurable advantages:
- Energy savings: up to 30% reduction in power consumption versus fixed-speed lobe technology
- Process control: automatic turndown from 100% to as low as 20% flow without bypass or waste
- Reliability: integrated overcurrent and pressure surge protection extends service intervals
Atlas Copco’s ZS series blowers include SMARTLINK, Atlas Copco’s remote monitoring platform, as standard, giving operators live performance data and predictive maintenance alerts from any device.
The British Compressed Air Society (bcas.org.uk), the UK trade association for compressed air equipment, recommends variable speed control as a primary energy-saving measure for facilities with fluctuating demand.
Compressed Air Blowers in Scotland: Design Air
Design Air has supplied, installed, and serviced compressed air and blower systems across Scotland since 2003. As an Atlas Copco Premier Distributor, we hold factory authorisation to install and service every blower series in the Atlas Copco range.
Our engineers hold the Diploma in Compressed Air Management (dipCAM), the industry’s highest technical qualification in compressed air, with IOSH and HNC engineering credentials across the team. We cover the Central Belt, Fife, Dundee, Ayrshire, Dumfries and Galloway, the Scottish Borders, and provide 24/7 emergency cover as far north as Aberdeen.
Our blower service includes the following:
- Application assessment and system sizing
- Supply, installation, and commissioning
- Ongoing maintenance contracts (Standard, Pro-Active, and Premium)
- 24/7 emergency breakdown cover with a guaranteed 4-hour response time for sites within 50 miles of Airdrie
A compressed air energy audit is often the right starting point, particularly when replacing an older roots or lobe blower. An audit quantifies the energy and cost savings available from a VSD+ upgrade, so you have a clear return on investment figure before committing to capital expenditure.
Get in touch with Design Air to discuss your blower application. We can size a system, provide a budgetary proposal, and arrange a site survey anywhere across Scotland.
Frequently Asked Questions (FAQ)
Compressed air from a standard compressor operates at 6 to 13 bar(g) or above. Air from a blower operates at a much lower pressure, typically 0.1 to 1.7 bar(g), but at much higher flow volume. Blowers are used where large quantities of air are needed at low pressure, such as wastewater aeration, pneumatic conveying, and process cooling.
A modern VSD+ rotary screw blower, such as the Atlas Copco ZS series (atlascopco.com), uses up to 30% less energy than a traditional roots or lobe blower at equivalent output. In a wastewater aeration application where blowers run continuously, that saving represents a substantial reduction in annual operating cost and carbon footprint.
Yes. Our engineers service and maintain blowers from all major manufacturers, including Kaeser, Robuschi, Gardner Denver, and CompAir. We hold a large inventory of spare parts for multiple brands and offer competitive maintenance contracts alongside our Atlas Copco supply.
